Product Introduction：

The bio medical waste shredder is a high-performance, high-efficiency, high-yield shredder suitable for shredding various materials. It is suitable for shredding materials with high toughness and hardness: glass, plastic, pipe, rubber, die head material, etc. The bio waste shredder is equipped with a pusher setting and a PLC automatic control system to achieve automatic intelligence.

Factory Floor

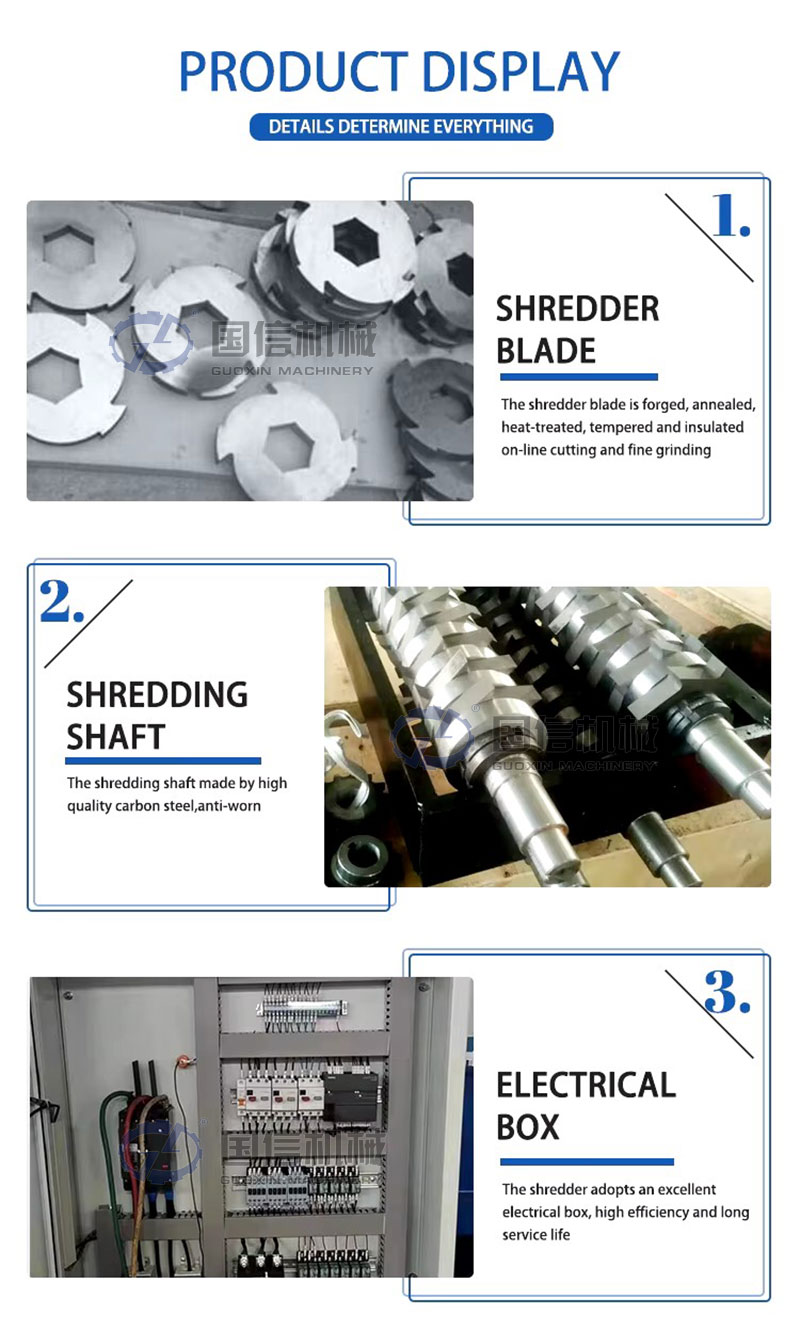

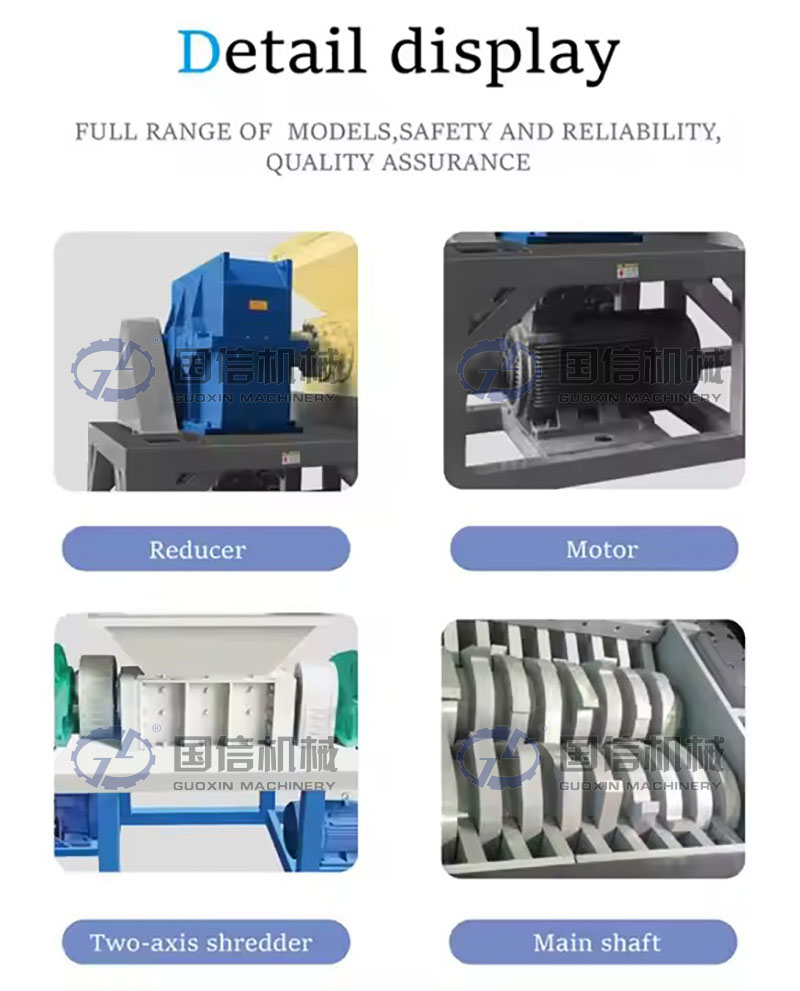

Internal structure

Structural features

1. The moving blade is made of DC53 material, and the fixed blade is made of D2 material.

2. For hollow and large-volume materials, a material pressing device can be optionally equipped.

3. Automatic overload protection function to avoid serious overload and jamming of the machine.

4. The split combination technology is adopted, and the blade can be replaced quickly and effectively.

5. The moving blade can be replaced only after the cutting edge is used twice, which reduces the operating cost.

6. The screen is highly interchangeable, faster and more convenient.

7. The guide strips and guide blocks installed in the push box can be faster and adjustable to maintain balanced push and sealing of the crushing chamber.

8. The main electrical control components are international brands such as Siemens and Schneider.

Application scope

The biomedical waste shredder machine can be customized to suit your materials and requirements to ensure maximum economic and production benefits. The reducer and rotor adopt the German standard DIN5480, and the Siemens PLC control provides automatic detection and overload protection. The solid waste shredder has the characteristics of large transmission torque, reliable connection, low speed, low noise and low maintenance cost.

bio medical waste shredder customization

1. Choose the appropriate shredder according to the size and characteristics of the material to be shredded and the output requirements.

2. Choose the appropriate material feeding and discharging methods according to the material characteristics and production site conditions.

Common feeding methods include: chain conveyor feeding, belt conveyor feeding, lifting conveyor feeding, etc. Special feeding systems can also be provided according to customer needs.

3. The machine height and discharging height can be customized.

4. Provide a variety of screens with different mesh sizes to meet the discharge particle size requirements.

Customer Case

Delivery site

Packaging of bio waste shredder

Inner Packaging: We can use plastic packaging if customers need

Outer Packaging: Usually wooden box or container

We can also pack the machine according to customers' needs.

Delivery Method: By Sea

Delivery Time: We respect the contract and will deliver on time as agreed for customized orders. For normal products, we have stock for immediate delivery

We are located at No. 9 Yulian Industrial Zone, Gongyi City. We design and manufacture biomedical waste shredders, solid waste crushers, municipal solid waste treatment equipment, domestic waste recycling equipment and industrial waste recycling machines. Our products have obtained CE and ISO certification. So far, we have exported to more than 60 countries and have a place in the world, and it is still growing.

Customer photo

We have established business plants in more than 10 countries and regions around the world, and our products are widely praised by customers for their high performance. Guoxin has been involved in the solid waste recycling industry for more than 20 years, and has formed a well-trained, skilled and dedicated R&D team, making a significant contribution to the industry and providing customers with stable and energy-saving waste reduction machines. Whether your application is garbage crushing, material recovery or processing and reuse, Guoxin can provide you with the most suitable solution, including installation, adjustment and maintenance, making us the perfect partner.
